Products

Ice machines

We build machines for four ice types, with daily capacity sized to your business. The values below are standard ranges. If you need a different capacity, we build to order.

Block Ice Machines Cube Ice Machines Flake Ice Machines Tube Ice Machines

Block weight

25

kg

1 - 30 tons/day

Block Ice Machines

Moulds frozen in a brine tank give large, dense blocks. Block ice melts slowly, so it works well for long-distance shipping and places without cold storage.

Fishing

Logistics

Construction

Daily capacity

1 - 30 tons/day

Ice size

5, 10, 25 or 50 kg blocks

Cooling

Air- or water-cooled condenser

Body

Stainless steel brine tank

Kalıp buz makinesi

—

Model 1

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Kalıp buz makinesi

—

Model 2

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Kalıp buz makinesi

—

Model 3

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Kalıp buz makinesi

—

Model 4

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Kalıp buz makinesi

—

Model 5

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

—

Kalıp buz makinesi

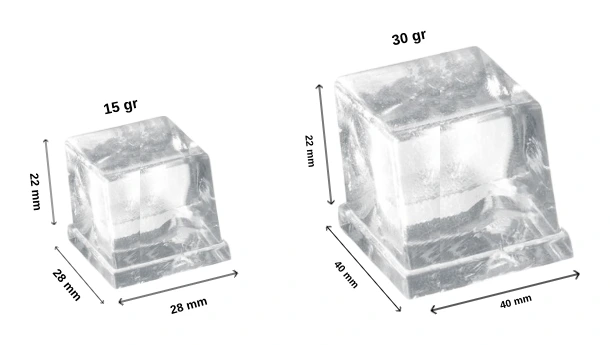

Cube ice sizes: 28×28×22 mm 15 g and 40×40×22 mm 30 g

Cube Ice Machines

Our high-efficiency, fully automatic cube ice machines produce 250 to 1000 kg of clear, hard cube ice per day. Low energy consumption keeps running costs down, and the electronic control system ensures reliable, continuous operation. The insulated bin and lid keep the ice longer, and the cubes melt slowly without spoiling the taste of the drink.

Hotel

Restaurant

Bar

Food

EFE Ice Systems 250KU cube ice machine with storage bin

250 kg/day

250KU

Daily capacity

250 kg/day

Hourly output

10.4 kg/h

Cube size

28×28×22 / 40×34×22 mm

Compressor

2 HP (Tecumseh)

Ice cycle

15 min

Bin capacity

170 kg

Power consumption

1.6 kW

Power supply

220V/50-60Hz/1Ph · 380V/50-60Hz/3Ph

Dimensions (W×D×H)

730 × 1030 × 1600 mm

EFE Ice Systems 500KU cube ice machine with storage bin

500 kg/day

500KU

Daily capacity

500 kg/day

Hourly output

20.8 kg/h

Cube size

28×28×22 / 40×40×22 mm

Compressor

3 HP

Ice cycle

15 min

Bin capacity

170 kg

Power consumption

2.2 kW

Power supply

380V/50-60Hz/3Ph

Dimensions (W×D×H)

730 × 1030 × 1750 mm

EFE Ice Systems 1000KU cube ice machine with storage bin

1000 kg/day

1000KU

Daily capacity

1000 kg/day

Hourly output

41.7 kg/h

Cube size

28×28×22 / 40×40×22 mm

Compressor

6 HP (Tecumseh)

Ice cycle

15 min

Bin capacity

300 kg

Power consumption

4.8 kW

Power supply

380V/50-60Hz/3Ph

Dimensions (W×D×H)

1330 × 1100 × 1830 mm

All models use an air-cooled condenser and R404A refrigerant; ice temperature is -5 °C. The machines reach their maximum capacity with 7 °C water and 10 °C ambient air. Specifications are subject to change without notice.

Fresh sheet of cube ice straight from the machine
Clear ice cubes in the palm of a hand

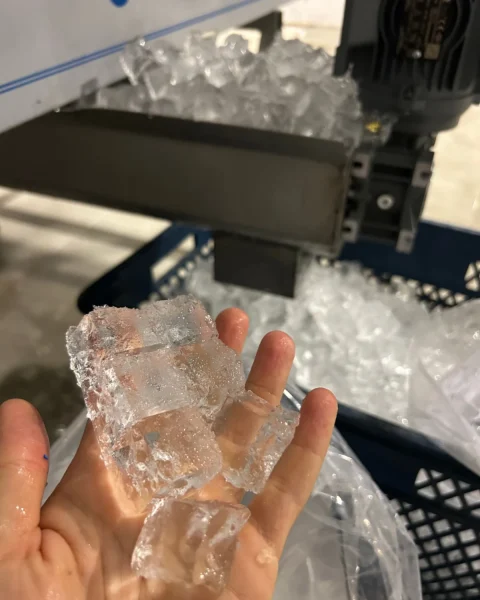

Clear ice cubes at the machine discharge
A 3×3 block of ice cubes in the hand
Clear, hard ice cubes
Compact flake ice machine

0.5 - 50 tons/day

Flake Ice Machines

Thin, dry ice scraped from a rotating evaporator. It wraps around the product and cools fast thanks to its large contact surface. Used instead of water in dough kneading and concrete mixing.

Fishing

Food processing

Bakery

Construction

Daily capacity

0.5 - 50 tons/day

Ice size

1.5 - 2.2 mm thick

Cooling

Air- or water-cooled

Body

Stainless steel evaporator and bin

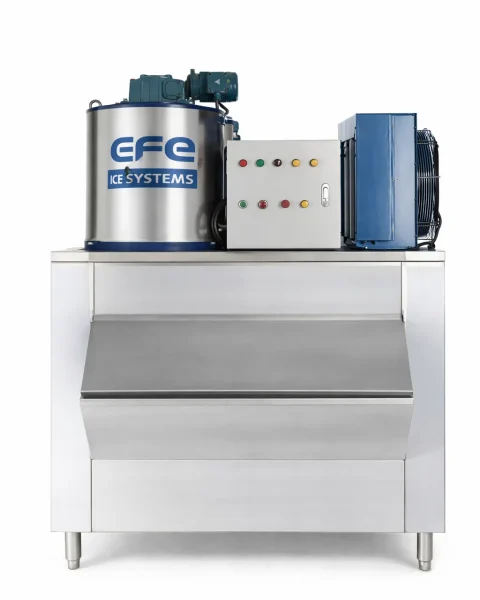

Flake ice machine with bin

Model with bin

Compact flake ice machine

Compact model

Steel-framed flake ice unit

Framed outdoor unit

Hazneli yaprak buz makinesi

—

Model 1

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Hazneli yaprak buz makinesi

—

Model 2

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Hazneli yaprak buz makinesi

—

Model 3

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Hazneli yaprak buz makinesi

—

Model 4

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Hazneli yaprak buz makinesi

—

Model 5

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

—

Hazneli yaprak buz makinesi

Tube diameter

Ø 28

mm

1 - 60 tons/day

Tube Ice Machines

Hollow cylindrical ice. It bags without sticking together, which makes it the choice for packaged ice sales and beverage filling plants.

Beverage

Packaged ice

Fishing

Daily capacity

1 - 60 tons/day

Ice size

Ø 22, 28 or 35 mm

Cooling

Air- or water-cooled

Body

Stainless steel body

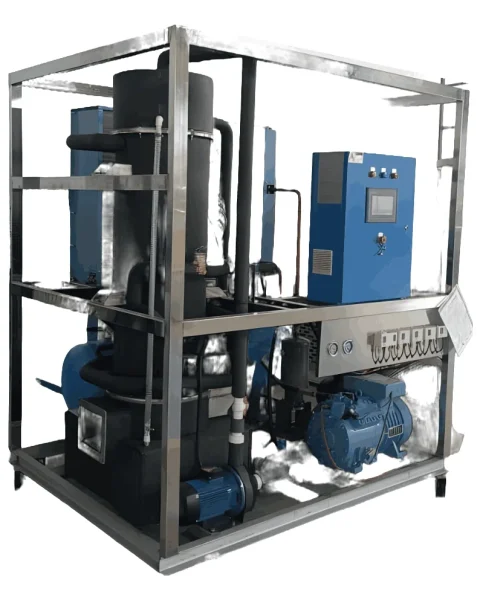

Tüp buz makinesi

—

Model 1

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Tüp buz makinesi

—

Model 2

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

Tüp buz makinesi

—

Model 3

Daily capacity

—

Hourly output

—

Cube size

—

Compressor

—

Ice cycle

—

Bin capacity

—

Power consumption

—

Power supply

—

Dimensions (W×D×H)

—

—

Tüp buz makinesi

Don't see the capacity you need?

Tell us your daily demand and we will design and build the machine for that capacity.

Request a quote
